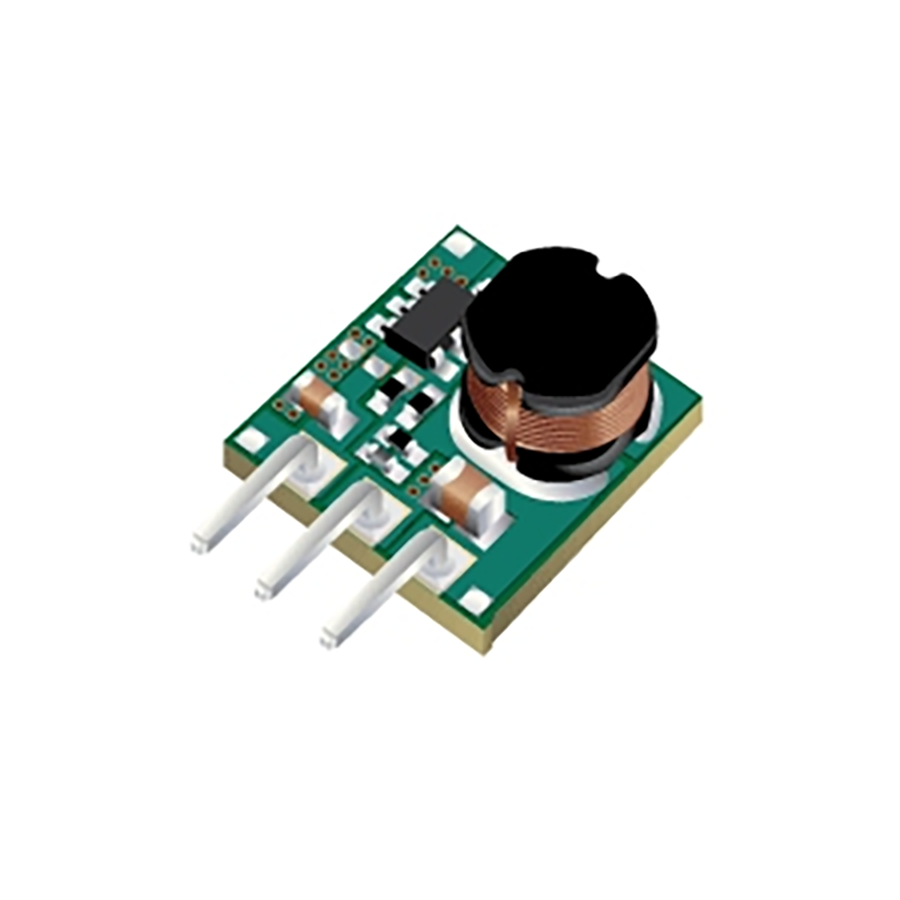

TPSM84203EAB
Manufacturer:
Texas Instruments
Mfr.Part #:
TPSM84203EAB
Datasheet:
Description:
DC to DC Converters SIP-3 Through Hole Nominal Input Voltage:4.5 V to 28 V Min Input Voltage:4.5 V Max Input Voltage:28 V 94 %
| Parameter | Value |
|---|---|
| Length | 11 mm |
| Width | 10 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 11 mm |
| Packaging | Tray |
| Thickness | 6.42 mm |
| RoHS | Non-Compliant |
| Min Input Voltage | 4.5 V |
| Output Current | 1.5 A |
| Output Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 4.5 V |
| Ambient Temperature Range High | 85 °C |
| Switching Frequency | 400 kHz |
| Max Input Voltage | 28 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 450 nA |
| Output Power | 4.95 W |
| Efficiency | 94 % |
| Nominal Input Voltage | 4.5 V to 28 V |
| Max Junction Temperature (Tj) | 125 °C |
| Schedule B | 8504409580 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Output Current-Channel 1 | 1.5 A |
| Output Voltage-Channel 1 | 3.3 V |
Stock: 750
Distributors
pcbx
pcbxUnit Price$3.86770
Ext.Price$3.86770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.86770 | $3.86770 |
| 10 | $3.47358 | $34.73580 |
| 25 | $3.23307 | $80.82675 |
| 50 | $3.00921 | $150.46050 |
| 100 | $2.80085 | $280.08500 |
| 300 | $2.60692 | $782.07600 |
| 500 | $2.42642 | $1213.21000 |
| 1000 | $2.25842 | $2258.42000 |
| 3000 | $2.10205 | $6306.15000 |
| 5000 | $1.95651 | $9782.55000 |
| 10000 | $1.82100 | $18210.00000 |
